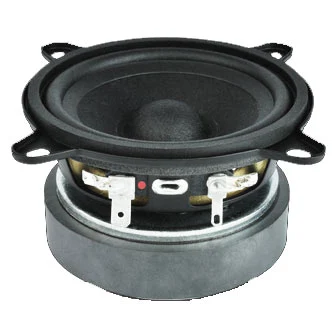

Faital Pro 3Fe25

350,00 kr

Artikelnr: N/A Kategori:



ts
Fs 110 Hz
Re 6.2 Ohm
Qes 0.9
Qms 4.7
Qts 0.7
Vas 0.8 dm^3 (0.03 ft^3)
Sd 29.4 cm^2 (4.56 in^2)
Xmax * 1.83 mm
Xdamage ** 7.9 mm
Mms 2.4 g
Bl 3.6 N/A
Le 0.07 mH
Mmd 2.3 g
Cms 0.67 mm/N
Rms 0.4 Kg/s
Eta Zero 0.18 %
EBP 120 Hz
ns

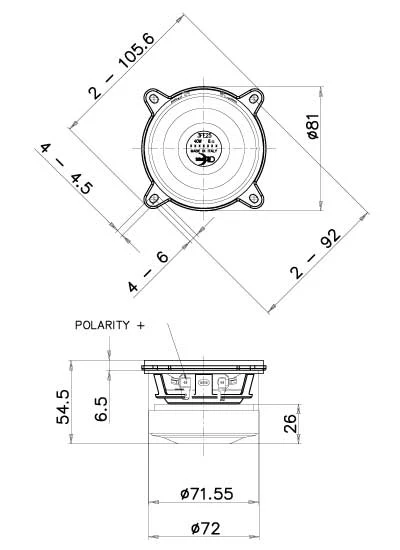

Nominal Diameter 80 mm (3 in)
Overall Diameter 105.6/81 mm (4.16/3.19 in)
Bolt Circle Diameter 92 mm (3.62 in)
Baffle Cutout Diameter 74 mm (2.91 in)
Depth 54.5 mm (2.15 in)
Flange and Gasket Thickness 6.5 mm (0.25 in)
Net Weight 545 g (1.20 lb)
Shipping Box
(Single Carton Box – 27 units)		 285x285x255 mm (11.22×11.22×10.04 in)
Shipping Weight (27 units) 20.8 Kg (45.86 lb
tp
Nominal Impedance 8 Ohm
Minimum Impedance 7 Ohm
AES Power Handling *** 20 W
Maximum Power Handling **** 40 W
Sensitivity (1W/1m) 91 dB
Frequency Range 100÷20000 Hz
Voice Coil Diameter 19 mm (0.75 in)
Winding Material Al
Former Material Kapton
Winding Depth 5 mm (0.2 in)
Magnetic Gap Depth 4 mm (0.16 in)
Flux Density 1.5 T
Magnet Ferrite Ring
Demodulation Copper Cap
Suspension ***** Half Roll
Val

4 ohm, 8 ohm, 16 ohm
