Faital Pro 3Fe22

350,00 kr

Artikelnr: N/A Kategori:









ts
Fs 110 Hz
Re 6.2 Ohm
Qes 0.5
Qms 5
Qts 0.45
Vas 0.95 dm^3 (0.033 ft^3)
Sd 29.4 cm^2 (4.56 in^2)
Xmax * 1.83 mm
Xdamage ** 7.3 mm
Mms 2.46 g
Bl 4.5 N/A
Le 0.15 mH
Mmd 2.38 g
Cms 0.78 mm/N
Rms 0.35 Kg/s
Eta Zero 0.28 %
EBP 220 Hz
ns

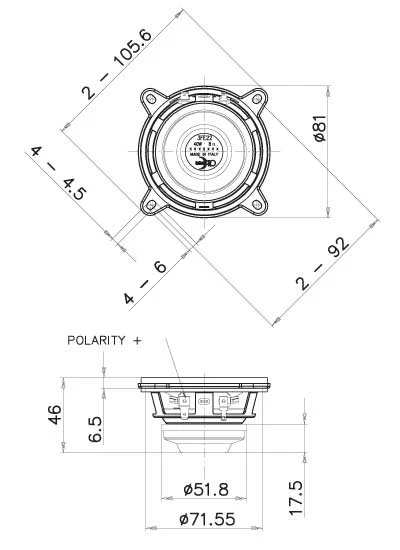

Nominal Diameter 80 mm (3 in)
Overall Diameter 105.6/81 mm (4.16/3.19 in)
Bolt Circle Diameter 92 mm (3.62 in)
Baffle Cutout Diameter 73.6 mm (2.90 in)
Depth 46 mm (1.55 in)
Flange and Gasket Thickness 6.5 mm (0.26 in)
Net Weight 240 g (0.53 lb)
Shipping Box
(Single Carton Box – 27 units)		 285x285x255 mm (11.22×11.22×10.04 in)
Shipping Weight (27 units) 10 Kg (22.05 lb)
tp
Nominal Impedance 4, 8 eller 16Ohm
Minimum Impedance 6.2 Ohm
AES Power Handling *** 20 W
Maximum Power Handling **** 40 W
Sensitivity (1W/1m) 91 dB
Frequency Range 100÷20000 Hz
Voice Coil Diameter 19 mm (0.75 in)
Winding Material Al
Former Material Kapton
Winding Depth 5 mm (0.2 in)
Magnetic Gap Depth 4 mm (0.16 in)
Flux Density 1.5 T
Magnet Neodymium Ring
Demodulation No
Suspension ***** Half Roll






Val

4ohm, 8ohm, 16ohm
